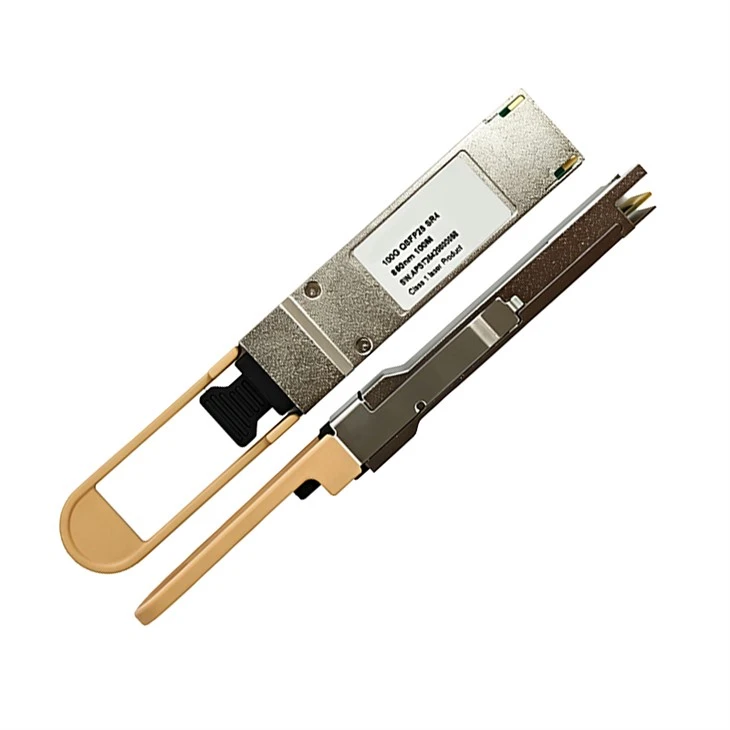

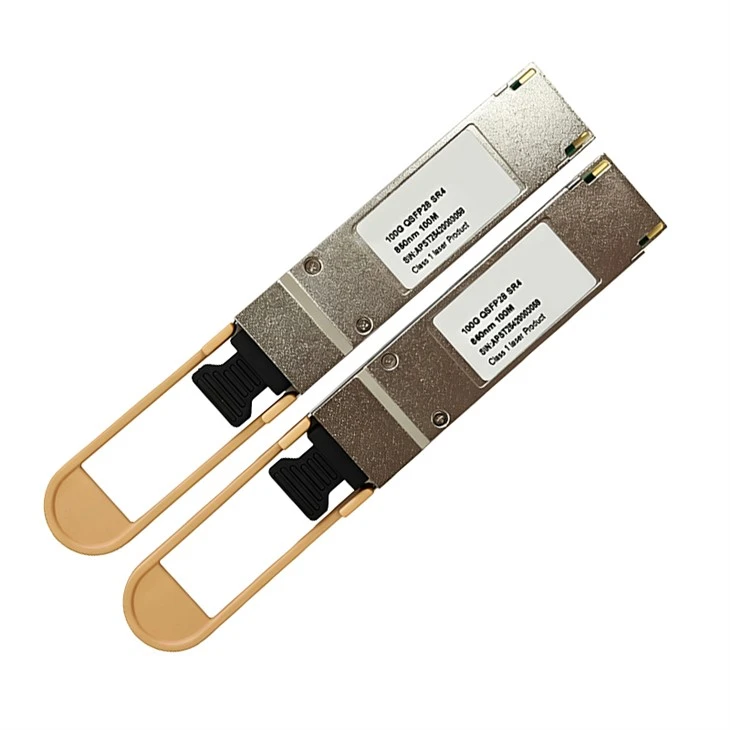

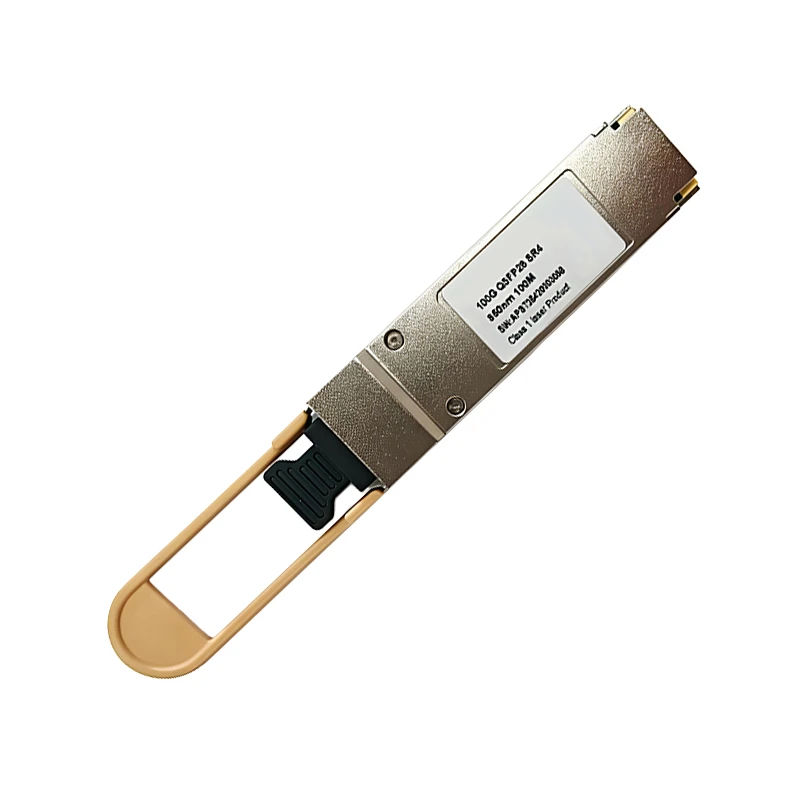

100Gbps QSFP28

The 100G QSFP28 Optical Transceiver is made for high-speed fiber links. It is perfect for data centers and telecom networks. This 100Gbps QSFP28 uses the standard QSFP28 38-pin package. It supports hot-plug. The module follows QSFP28 MSA, SFF-8636, SFF-8665, and SFF-8679. It also meets IEEE 802.3bm. The 100Gbps QSFP28 is RoHS compliant. It runs on a single +3.3V supply. The operating temperature is 0°C to +70°C. The storage temperature is -40°C to +85°C. The I2C digital interface lets you monitor the module in real time. The electrical parameters are the same across all models. The supply voltage range is 3.14 to 3.47V. The differential input and output impedance is 100Ω. The input swing is 180 to 1000mV. The output swing is 300 to 1200mV. This 100Gbps QSFP28 works with all major switches and servers.

The 100G QSFP28 Optical Transceiver covers every application you need. For short multi-mode links, it uses 850nm VCSEL. The distance is 100 m with an MPO connector. For single-mode short and medium links, it uses wavelengths from 1260 to 1331nm. Distances include 500 m, 2 km, and 10 km. For long and ultra-long links, the 100G QSFP28 Optical Transceiver gives you 20 km, 40 km, and 80 km. It uses EML lasers and APD or PIN receivers. The connectors are MPO or LC duplex. The optical power and sensitivity are matched to each distance. This 100G QSFP28 Optical Transceiver gives you the right part for every job.

You can use this 100G QSFP28 Optical Transceiver in rack-to-rack links, floor-to-floor links, and campus backbones. It also works for metro and core networks. The 100G QSFP28 Optical Transceiver supports 100G Ethernet, InfiniBand QDR, and OTU4. It is a one-stop solution for high-speed optical communication.
